  • 产品描述:用于光通信传输的衍射光栅 Product: Transmission Diffraction Gratings for Optical Communications Transmission gratings operate to angularly disperse incident light into a spectrum. LightSmyths transmission gratings utilize state-o

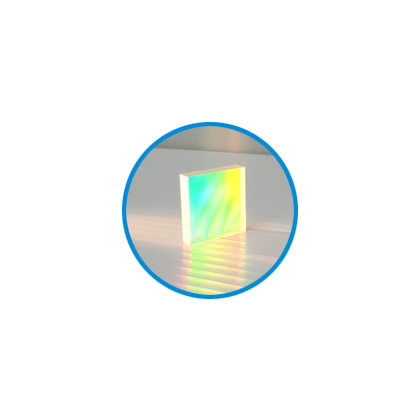

用于光通信传输的衍射光栅

Product: Transmission Diffraction Gratings for Optical Communications

Transmission gratings operate to angularly disperse incident light into a spectrum. LightSmyth’s transmission gratings utilize state-of-the-art design and precise lithographic wafer-scale fabrication to deliver record-breaking optical performance combined with low cost, providing your optical systems with a powerful competitive edge. These gratings provide the world’s best combination of highest diffraction efficiency, low PDL and highly competitive pricing.

Measured Diffraction Efficiency Curves

Measured Diffraction Efficiency Curves

Advantages:

  • Exceptional diffraction efficiency
  • Ultra-low polarization-dependent loss
  • Special design for broad passband and low angular sensitivity
  • Uses only fused silica and highly robust dielectric materials
  • No polymers or organics are used; Telcordia-qualified
  • Each grating is a master; ultra-low scatter
  • Extremely precise line density (line density uniformity <0.001 lines/mm)
  • Highly competitive pricing

Applications:

  • Optical telecommunications (ROADM, WSS, WDM MUX/DEMUX)
  • Pulse compression of pico- and femto-second pulses
  • High power lasers
  • Spectral beam combining
  • Remote optical sensors and spectroscopy

Specifications below are for stock gratings that are available immediately. Transmission gratings of similar performance with other line densities, operating spectral bands, input/output beam geometries and substrate sizes can be supplied.

Polarization-Independent Telecom Transmission Gratings
S/N prefix Wavelength Range (nm) Line Density (Lines/ mm) Angle of Incidence1 (°) Diffraction Efficiency2 (%) Polarization- Dependent Loss2 (dB) Spectral Plot
T-1000C 1525-1565 1000.00 50.6+1 > 93 < 0.25 Spectral Plot
T-966C 1525-1565 966.18 48.3+1 > 94  < 0.2 Spectral Plot
T-940C 1525-1565 940.07 46.5+1 > 94  < 0.2 Spectral Plot
T-940L 1570-1610 940.07 48.4+1 > 94 < 0.2 Spectral Plot
T-940CL 1526-1610 940.07 47.5+1 > 92  < 0.2 Spectral Plot



High Dispersion Single Polarization Telecom Transmission Gratings
P/N prefix Wavelength Range (nm) Line Density (Lines/ mm) Angle of Incidence1 (°) Diffraction Efficiency2 (%) Operational Polarization Spectral Plot
T-1200C 1529-1568 1201.20 68+0.5 > 90  S Spectral Plot
T-1166L 1572-1612 1166.18 68+0.5 > 90  S Spectral Plot



Polarization Independent Datacom Transmission Gratings
P/N prefix Wavelength Range (nm) Line Density (Lines/ mm) Angle of Incidence1 (°) Diffraction Efficiency2 (%) Polarization-Dependent Loss (dB) Spectral Plot
T-1702-895 850-940 1702.13 49.5±1 ≥ 90  < 0.3 Spectral Plot
T-1200-1310 1275-1345 1201.20 52.0±1 ≥ 90 < 0.3 Spectral Plot
Notes: 1 Gratings will be highly efficient over larger range of angles – please inquire.
  2 Determined from parabolic fit of efficiency as a function of wavelength for s- and p- polarization, worst case in the wavelength range.
